Heavy duty shock absorber

Optional accessory

Home Product Heavy duty shock absorber

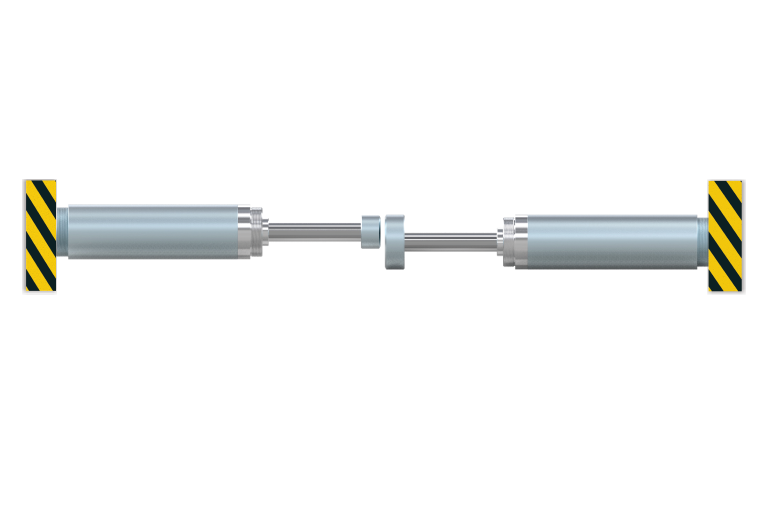

Product introduction

Optional accessory

Tips

The buffering travel is longer than 300 mm; flange is not suggested
Tips

We also offer necessary components and accessories

Safety chain

Silencer

Metal sleeve

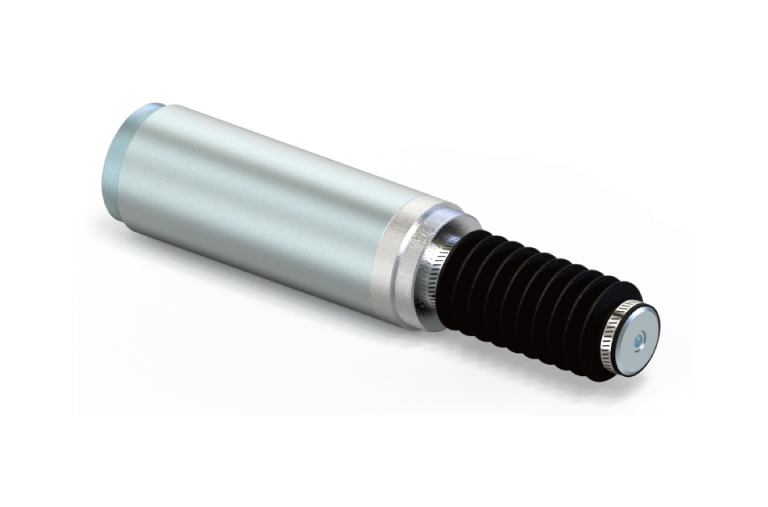

Ripple tube

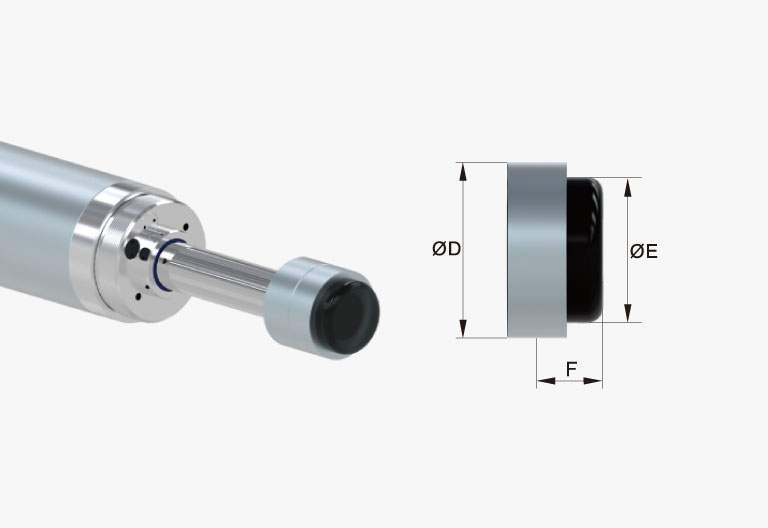

Enlarged impact head

Expand all profiles

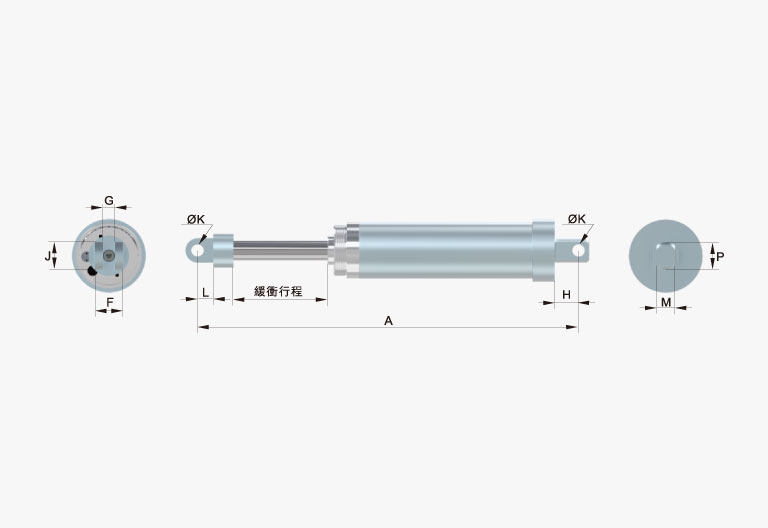

Performance parameter

U shape jig

U shape jig Silencer

U shape jig Silencer

Model	HD40-050	HD40-100	HD40-150	HD40-200	HD40-250	HD40-300	HD50-050	HD50-100	HD50-150	HD50-200	HD50-250	HD50-300	HD75-050	HD75-100	HD75-150	HD75-200	HD75-250	HD75-300	HD100-050	HD100-100	HD100-150	HD100-200	HD100-250	HD100-300	HD125-050	HD125-100	HD125-150	HD125-200	HD125-250	HD125-300
A (mm)	382	482	582	682	782	882	398	497	597	697	797	897	432	520	642	736	838	940	570	672	772	875	976	1,143	640	751	853	955	1,055	1,157
D (mm)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
E (mm)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
F (mm)	38.1	38.1	38.1	38.1	38.1	38.1	55	55	55	55	55	55	90	90	90	90	90	90	140	140	140	140	140	140	150	150	150	150	150	150
G (mm)	16.3	16.3	16.3	16.3	16.3	16.3	25	25	25	25	25	25	38	38	38	38	38	38	65	65	65	65	65	65	70	70	70	70	70	70
H (mm)	35	35	35	35	35	35	34	34	34	34	34	34	32	32	32	32	32	32	50	50	50	50	50	50	70	70	70	70	70	70
J (mm)	38.1	38.1	38.1	38.1	38.1	38.1	40	40	40	40	40	40	60	60	60	60	60	60	100	100	100	100	100	100	100	100	100	100	100	100
K (mm)	20	20	20	20	20	20	20	20	20	20	20	20	25	25	25	25	25	25	50	50	50	50	50	50	60	60	60	60	60	60
L (mm)	38	38	38	38	38	38	40	40	40	40	40	40	45	45	45	45	45	45	70	70	70	70	70	70	80	80	80	80	80	80
M	25	25	25	25	25	25	25	25	25	25	25	25	38	38	38	38	38	38	-	-	-	-	-	-	-	-	-	-	-	-
P (mm)	38	38	38	38	38	38	40	40	40	-	40	40	60	60	60	60	60	60	-	-	-	-	-	-	-	-	-	-	-	-
Corresponding illustration	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1

Model	HD40-050	HD40-100	HD40-150	HD40-200	HD40-250	HD40-300	HD50-050	HD50-100	HD50-150	HD50-200	HD50-250	HD50-300	HD75-050	HD75-100	HD75-150	HD75-200	HD75-250	HD75-300	HD100-050	HD100-100	HD100-150	HD100-200	HD100-250	HD100-300	HD125-050	HD125-100	HD125-150	HD125-200	HD125-250	HD125-300
A (mm)	382	482	582	682	782	882	398	497	597	697	797	897	432	520	642	736	838	940	570	672	772	875	976	1,143	640	751	853	955	1,055	1,157
D (mm)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
E (mm)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
F (mm)	38.1	38.1	38.1	38.1	38.1	38.1	55	55	55	55	55	55	90	90	90	90	90	90	140	140	140	140	140	140	150	150	150	150	150	150
G (mm)	16.3	16.3	16.3	16.3	16.3	16.3	25	25	25	25	25	25	38	38	38	38	38	38	65	65	65	65	65	65	70	70	70	70	70	70
H (mm)	35	35	35	35	35	35	34	34	34	34	34	34	32	32	32	32	32	32	50	50	50	50	50	50	70	70	70	70	70	70
J (mm)	38.1	38.1	38.1	38.1	38.1	38.1	40	40	40	40	40	40	60	60	60	60	60	60	100	100	100	100	100	100	100	100	100	100	100	100
K (mm)	20	20	20	20	20	20	20	20	20	20	20	20	25	25	25	25	25	25	50	50	50	50	50	50	60	60	60	60	60	60
L (mm)	38	38	38	38	38	38	40	40	40	40	40	40	45	45	45	45	45	45	70	70	70	70	70	70	80	80	80	80	80	80
M	25	25	25	25	25	25	25	25	25	25	25	25	38	38	38	38	38	38	-	-	-	-	-	-	-	-	-	-	-	-
P (mm)	38	38	38	38	38	38	40	40	40	-	40	40	60	60	60	60	60	60	-	-	-	-	-	-	-	-	-	-	-	-
Corresponding illustration	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1

Model	HD40-050	HD40-100	HD40-150	HD40-200	HD40-250	HD40-300	HD50-050	HD50-100	HD50-150	HD50-200	HD50-250	HD50-300	HD75-050	HD75-100	HD75-150	HD75-200	HD75-250	HD75-300	HD100-050	HD100-100	HD100-150	HD100-200	HD100-250	HD100-300	HD125-050	HD125-100	HD125-150	HD125-200	HD125-250	HD125-300
A (mm)	382	482	582	682	782	882	398	497	597	697	797	897	432	520	642	736	838	940	570	672	772	875	976	1,143	640	751	853	955	1,055	1,157
D (mm)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
E (mm)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
F (mm)	38.1	38.1	38.1	38.1	38.1	38.1	55	55	55	55	55	55	90	90	90	90	90	90	140	140	140	140	140	140	150	150	150	150	150	150
G (mm)	16.3	16.3	16.3	16.3	16.3	16.3	25	25	25	25	25	25	38	38	38	38	38	38	65	65	65	65	65	65	70	70	70	70	70	70
H (mm)	35	35	35	35	35	35	34	34	34	34	34	34	32	32	32	32	32	32	50	50	50	50	50	50	70	70	70	70	70	70
J (mm)	38.1	38.1	38.1	38.1	38.1	38.1	40	40	40	40	40	40	60	60	60	60	60	60	100	100	100	100	100	100	100	100	100	100	100	100
K (mm)	20	20	20	20	20	20	20	20	20	20	20	20	25	25	25	25	25	25	50	50	50	50	50	50	60	60	60	60	60	60
L (mm)	38	38	38	38	38	38	40	40	40	40	40	40	45	45	45	45	45	45	70	70	70	70	70	70	80	80	80	80	80	80
M	25	25	25	25	25	25	25	25	25	25	25	25	38	38	38	38	38	38	-	-	-	-	-	-	-	-	-	-	-	-
P (mm)	38	38	38	38	38	38	40	40	40	-	40	40	60	60	60	60	60	60	-	-	-	-	-	-	-	-	-	-	-	-
Corresponding illustration	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1

Model	HD40-050	HD40-100	HD40-150	HD40-200	HD40-250	HD40-300	HD50-050	HD50-100	HD50-150	HD50-200	HD50-250	HD50-300	HD75-050	HD75-100	HD75-150	HD75-200	HD75-250	HD75-300	HD100-050	HD100-100	HD100-150	HD100-200	HD100-250	HD100-300	HD125-050	HD125-100	HD125-150	HD125-200	HD125-250	HD125-300
A (mm)	382	482	582	682	782	882	398	497	597	697	797	897	432	520	642	736	838	940	570	672	772	875	976	1,143	640	751	853	955	1,055	1,157
D (mm)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
E (mm)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
F (mm)	38.1	38.1	38.1	38.1	38.1	38.1	55	55	55	55	55	55	90	90	90	90	90	90	140	140	140	140	140	140	150	150	150	150	150	150
G (mm)	16.3	16.3	16.3	16.3	16.3	16.3	25	25	25	25	25	25	38	38	38	38	38	38	65	65	65	65	65	65	70	70	70	70	70	70
H (mm)	35	35	35	35	35	35	34	34	34	34	34	34	32	32	32	32	32	32	50	50	50	50	50	50	70	70	70	70	70	70
J (mm)	38.1	38.1	38.1	38.1	38.1	38.1	40	40	40	40	40	40	60	60	60	60	60	60	100	100	100	100	100	100	100	100	100	100	100	100
K (mm)	20	20	20	20	20	20	20	20	20	20	20	20	25	25	25	25	25	25	50	50	50	50	50	50	60	60	60	60	60	60
L (mm)	38	38	38	38	38	38	40	40	40	40	40	40	45	45	45	45	45	45	70	70	70	70	70	70	80	80	80	80	80	80
M	25	25	25	25	25	25	25	25	25	25	25	25	38	38	38	38	38	38	-	-	-	-	-	-	-	-	-	-	-	-
P (mm)	38	38	38	38	38	38	40	40	40	-	40	40	60	60	60	60	60	60	-	-	-	-	-	-	-	-	-	-	-	-
Corresponding illustration	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1

Parameter list

Model	HD40	HD50	HD75
A (mm)	-	-	-
D (mm)	59	59	80
E (mm)	49	49	66
F (mm)	25	25	25
G (mm)	-	-	-
H (mm)	-	-	-
J (mm)	-	-	-
K (mm)	-	-	-
L (mm)	-	-	-
M	-	-	-
P (mm)	-	-	-
Corresponding illustration	1	1	1

Model	HD40	HD50	HD75
A (mm)	-	-	-
D (mm)	59	59	80
E (mm)	49	49	66
F (mm)	25	25	25
G (mm)	-	-	-
H (mm)	-	-	-
J (mm)	-	-	-
K (mm)	-	-	-
L (mm)	-	-	-
M	-	-	-
P (mm)	-	-	-
Corresponding illustration	1	1	1

Model	HD40	HD50	HD75
A (mm)	-	-	-
D (mm)	59	59	80
E (mm)	49	49	66
F (mm)	25	25	25
G (mm)	-	-	-
H (mm)	-	-	-
J (mm)	-	-	-
K (mm)	-	-	-
L (mm)	-	-	-
M	-	-	-
P (mm)	-	-	-
Corresponding illustration	1	1	1

Model	HD40	HD50	HD75
A (mm)	-	-	-
D (mm)	59	59	80
E (mm)	49	49	66
F (mm)	25	25	25
G (mm)	-	-	-
H (mm)	-	-	-
J (mm)	-	-	-
K (mm)	-	-	-
L (mm)	-	-	-
M	-	-	-
P (mm)	-	-	-
Corresponding illustration	1	1	1

Parameter list

Model	HD40-050	HD40-100	HD40-150	HD40-200	HD40-250	HD40-300	HD50-050	HD50-100	HD50-150	HD50-200	HD50-250	HD50-300	HD75-050	HD75-100	HD75-150	HD75-200	HD75-250	HD75-300	HD100-050	HD100-100	HD100-150	HD100-200	HD100-250	HD100-300	HD125-050	HD125-100	HD125-150	HD125-200	HD125-250	HD125-300
A (mm)	382	482	582	682	782	882	398	497	597	697	797	897	432	520	642	736	838	940	570	672	772	875	976	1,143	640	751	853	955	1,055	1,157
D (mm)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
E (mm)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
F (mm)	38.1	38.1	38.1	38.1	38.1	38.1	55	55	55	55	55	55	90	90	90	90	90	90	140	140	140	140	140	140	150	150	150	150	150	150
G (mm)	16.3	16.3	16.3	16.3	16.3	16.3	25	25	25	25	25	25	38	38	38	38	38	38	65	65	65	65	65	65	70	70	70	70	70	70
H (mm)	35	35	35	35	35	35	34	34	34	34	34	34	32	32	32	32	32	32	50	50	50	50	50	50	70	70	70	70	70	70
J (mm)	38.1	38.1	38.1	38.1	38.1	38.1	40	40	40	40	40	40	60	60	60	60	60	60	100	100	100	100	100	100	100	100	100	100	100	100
K (mm)	20	20	20	20	20	20	20	20	20	20	20	20	25	25	25	25	25	25	50	50	50	50	50	50	60	60	60	60	60	60
L (mm)	38	38	38	38	38	38	40	40	40	40	40	40	45	45	45	45	45	45	70	70	70	70	70	70	80	80	80	80	80	80
M	25	25	25	25	25	25	25	25	25	25	25	25	38	38	38	38	38	38	-	-	-	-	-	-	-	-	-	-	-	-
P (mm)	38	38	38	38	38	38	40	40	40	-	40	40	60	60	60	60	60	60	-	-	-	-	-	-	-	-	-	-	-	-
Corresponding illustration	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1

Model	HD40	HD50	HD75
A (mm)	-	-	-
D (mm)	59	59	80
E (mm)	49	49	66
F (mm)	25	25	25
G (mm)	-	-	-
H (mm)	-	-	-
J (mm)	-	-	-
K (mm)	-	-	-
L (mm)	-	-	-
M	-	-	-
P (mm)	-	-	-
Corresponding illustration	1	1	1
